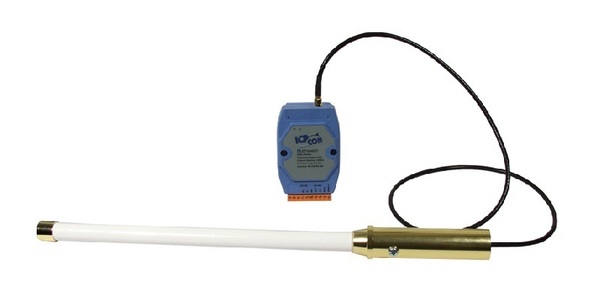

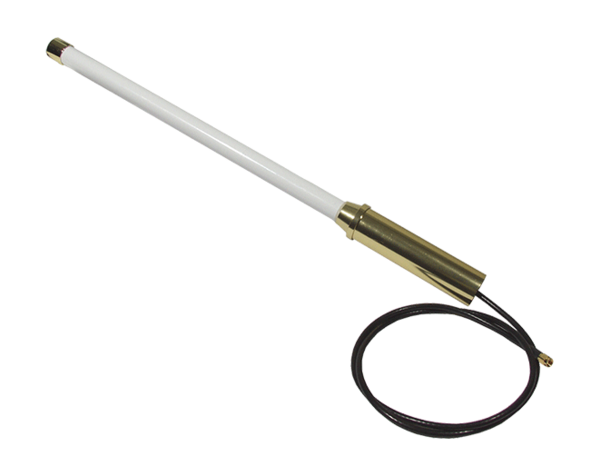

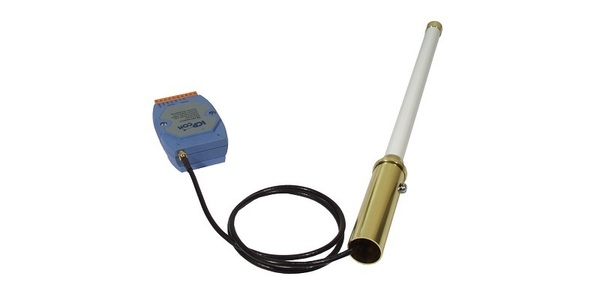

ANT-8 (옴니 지향성) Gain : 8dBi, 2.4GHz 외부 안테나 |
|
모델명 : ANT-8 |
ANT-124-03
|
ANT-124-05
|
ANT-8
|
ANT-15
|
ANT-15YG-1
|
ANT-18
|
ANT-21
|
|
SST-2450 |
300 m
|
350 m
|
550 m
|
1100 m
|
1100 m
|
1400 m
|
1750 m
|
ZB-2000-T |
100 m
|
115 m
|
180 m
|
360 m
|
360 m
|
450 m
|
560 m
|
ZB-2000-PA |
None
|
700 m
|
1000 m
|
2000 m
|
2000 m
|
2560 m
|
3150 m
|
ZT-2000 |
None
|
700 m
|
1000 m
|
2000 m
|
2000 m
|
2560 m
|
3150 m
|
※ These values represent the average LOS (Line of Sight) transmission range and are based on an elevation of three meters ※ Transmission range values should only be used as a reference and should be adjusted accordingly depending on the actual environment |
커넥터 유형 | RP SMA Male (Plug) |
케이블 | 3S004 x 1 (HDF 200 케이블, 1 미터 N type male to RP-SMA male) |
치수 (mm) | φ35 x 420 mm |
무게 | 430 g |
레이돔 색상 | 화이트 |
작동 온도 | 20 °C ~ 60 °C |
H-평면 필드 패턴 | ||||
E-평면 필드 패턴 | ||||
|
||||
|
