ANT-15YG-1

제품명
ANT-15YG-1
용도
외부 안테나
제조사
ICPDAS(대만)
ANT-15YG-1
이득 : 15dBi , 2.4GHz 외부 안테나




Model: ANT-15YG-1





  • 802.11b/g
  • 15 dBi
  • N Type Female (Jack)
  • N Type Male (Plug) to RP SMA Male (Plug) Cable

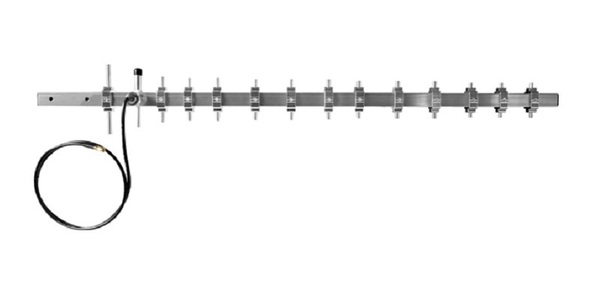

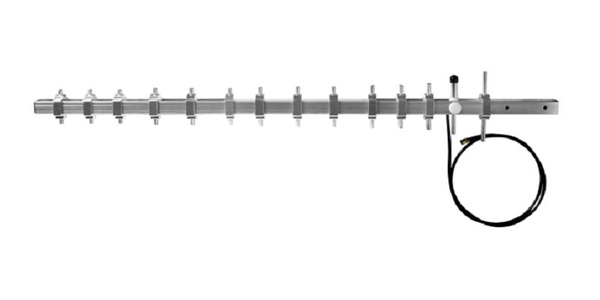

  • Yagi Antenna





ANT-15YG is a 15 dBi Antenna





Default Antenna



ANT-124-03

ANT-124-05

ANT-8

ANT-15

ANT-15YG-1

ANT-18

ANT-21

SST-2450

300 m

350 m

550 m

1100 m

1100 m

1400 m

1750 m

ZB-2000-T

100 m

115 m

180 m

360 m

360 m

450 m

560 m

ZB-2000-PA

None

700 m

1000 m

2000 m

2000 m

2560 m

3150 m

ZT-2000

None

700 m

1000 m

2000 m

2000 m

2560 m

3150 m

  ※ These values represent the average LOS (Line of Sight) transmission range and are based on an elevation of three meters
※ Transmission range values should only be used as a reference and should be adjusted accordingly depending on the actual environment


Antenna Type
Operating Environment Outdoor
Radiation Directional Sector
Electrical Specifications
Frequency Range 2400 ~ 2500 MHz
Gain 15 dBi
VSWR 1:1.5 (Max.)
Polarization Linear
HPBW/Horizontal 25°
HPBW/Vertical 15°
Power Handing 15 W (Max.)
Impedance 50 Ω
Cable RG-58, 100 cm
Connector N Type Female
Environmental and Mechanical Characteristics
Operating Temperature -40 ~ +80°C
Radome Material Aluminum
Weight 570 g
Dimensions (L x W) 770 mm x 50 mm x 45 mm

ANT-15YG-1 5 km, 2.4 GHz External Antenna (Directional)
Important Note: Distance data is for reference only. Actual results may be different depending on the environment.

3S005 HDF 200 cable, 3 meter long N type male to RP-SMA male
3S001-1 RG58A/U 1 Meter Long SMA male to RP-SMA male
