OPC UA I/O 모듈 소개

제품명: OPC UA I/O 모듈 소개

용도: OPC UA I/O 모듈 소개

특성: Ethernet I/O 모듈

제조사: ICPDAS (대만)

Introduction

OPC UA I/O module is a series of Ethernet I/O modules with built-in OPC UA Server and MQTT Client services. The OPC UA I/O module, also called UA I/O or U-7500 Series. It has a built-in dual-port Ethernet switch to implement daisy-chain topology. The cabling is much easy and can reduce the total cable and switch cost. It follows IEEE 802.3af (Class 2) compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater fl exibility and effi ciency to simplify system design, save space, and reduce wirings and power sockets.

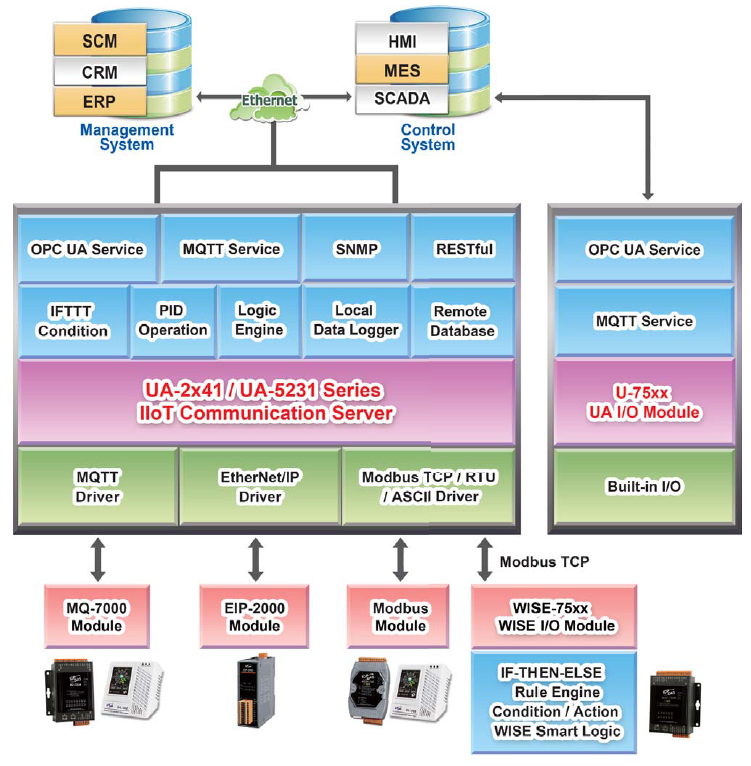

In industrial communication, UA I/O supports the OPC UA server and MQTT client and RESTful API functions (can execute all communications at the same time.). Users can choose the networking mode according to their needs and environment, to transmit the values of built-in I/O channels to the cloud IT system or field control system for reading and writing. Support Scaling. Let the analog signal be converted into a more readable value. Support logic function rule setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specific time; and support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.

UA I/O Series provides a Web-based User Interface (Web UI) to configure the module, control the output channels, monitor the connection, and I/O status via a normal web browser. It is easy, fast, and no extra APP needed.

Features

1. Built-in OPC UA Server Service

Compliance with IEC 62541 Standard. Provides functions of Active Transmission, Transmission Security Encryption ( SSL / TLS ), User Authentication (X.509 Certificates / Account password), Communication Error Detection and Recovery, etc. to connect SCADA or OPC UA Clients. Recommend to keep the maximum number of sessions within 3 connections

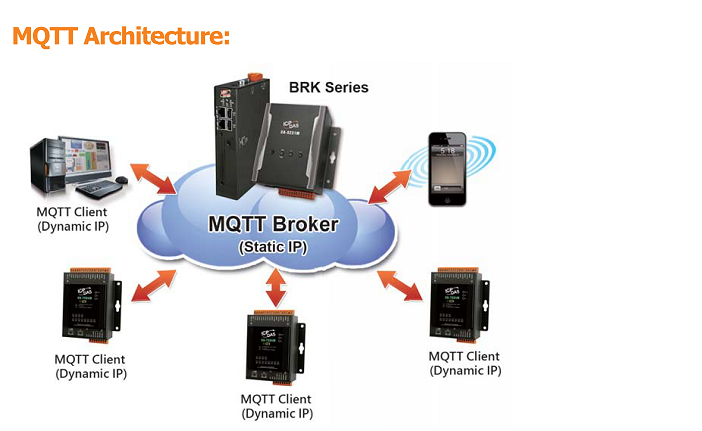

2. Built-in MQTT Client Service

Build-in MQTT Client Service (Compliance with MQTT V.3.1.1 protocol). Provides functions of IoT Active M2M Transmission, QoS (Quality of Service), Retains Mechanism, Identity Authentication, Encryption, Last Will, etc.

3. Support RESTful API Function

Can read/write I/O and virtual point through HTTP.
Provide high-security HTTPS (identity verification and communication encryption) to read/write I/O and Virtual points.

4. Support to Execute OPC UA , MQTT and RESTful API Communication at the Same Time

5. Support Scaling

AI/O modules support Scaling. Let the analog signal be converted into a more readable value.

6. Support Logic Function Rule Setting: IF, THEN, ELSE

Users can set up logical condition/action for I/O and virtual point.

7. Support Schedule

Provide schedule function to execute the set rules at a specific time.

8. Support Event Log

When the I/O value changes, record the current I/O value for easy device tracking in the future.

9. Built-in Web Server to Provide the Web User Interface

UA I/O Series provides a Web-based User Interface (Web UI) to configure the module, control the output channels, monitor the connection, and I/O status via a normal web browser. It is easy, fast, and no extra APP needed.

10. Built-in I/O Channels

UA I/O series has built-in AI, AO, DI, or DO channels, which is convenient for users to choose different models according to different needs.

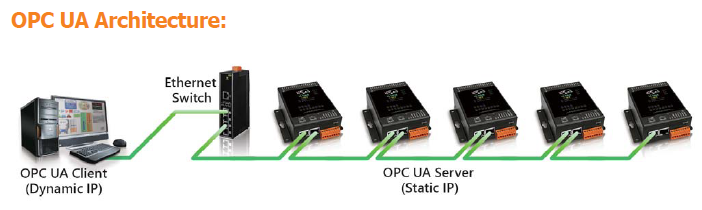

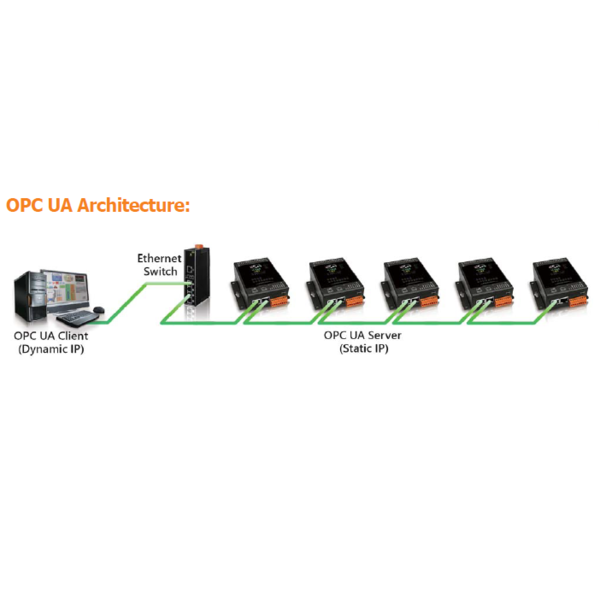

11. Dual-port Ethernet Switch for Daisy-Chain Topology

The cabling of Daisy-Chain Topology is much easier and total costs of cable and switch are significantly reduced.

12. IEEE 802.3af-compliant Power over Ethernet (PoE)

UA I/O follows IEEE 802.3af (classification, Class 2) compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets.

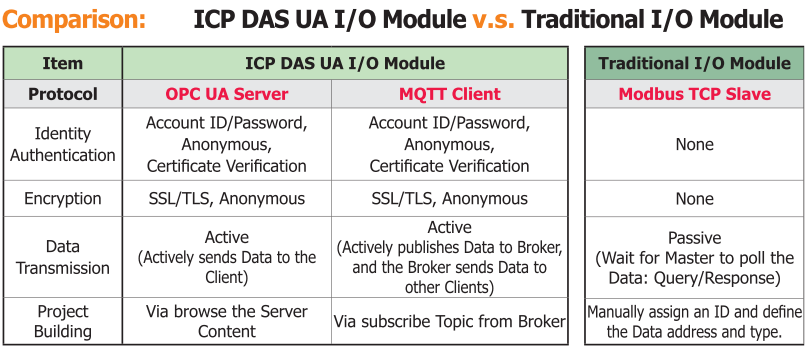

Advantages
