Introduction

Seamless Integration with BMS



Wireless Locating System can be used in indoor and outdoor environments. It can monitor the exact location of certain objects or persons and integrate the location information into the back-end servers. In addition, it combines the emergency applications and makes those who call help can be found immediately. And then, the WLS becomes a safety-based locating system. The WLS can be used in industrial or commercial applications, such as: the large commercial offices, the shopping malls, the high-voltage electrical room, the toxic gas room, the ultra-high temperature processing factories, the hospitals or care centers and etc. The customers in the shopping mall probably are changing consumer behavior. Does the store supervisor grasp your opportunity yet? Maybe there are unscrupulous visitors to stroll inside offices or wrongdoing, do you find it?Someone is in danger and calling help in the hazardous working area, do you feel that? Patients who stay in the bathroom or toilet has exceeded the normal time, do you find the situation? These problems are difficult to detect and may cause harm to people or to the enterprise. The WLS could help to find out the problems and provide the efficient way to manage them.

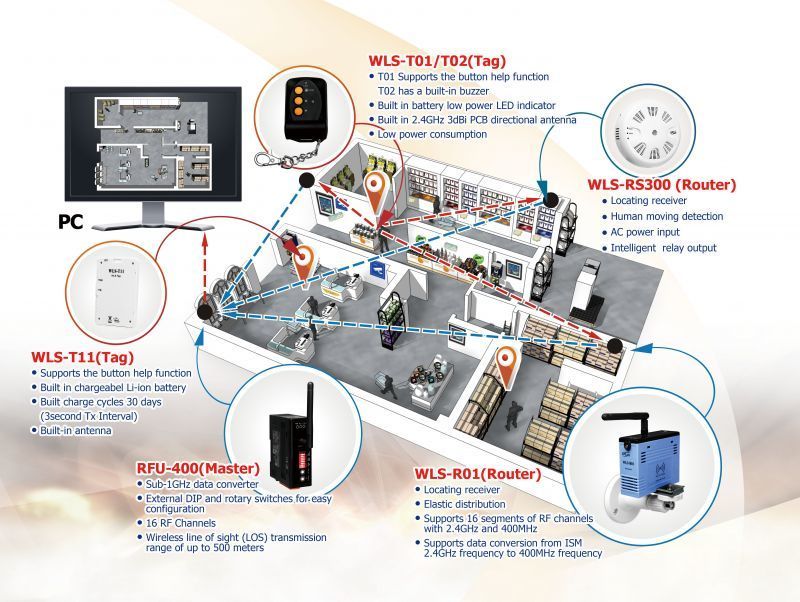

Selection Guide



WLS Modules
Model Product Description
WLS-T01

Battery Standard Type Wireless Locating System Transmitter with Help Button(RoHs)
WLS-T02

Battery Standard Type Wireless Locating System Transmitter with the Buzzer(RoHs)
WLS-T11

Charging Card Type Wireless Locating System Transmitter with Help Button(RoHs)
WLS-R01

General Type Wireless Locating System Receiver (RoHs)
WLS-RS300

Ceiling Mounting Type Wireless Locating System Receiver with Alarm, Relay and T&H Sensor(RoHs)
WLS-CFG

Wireless Location System Configurator (RoHs)





Software

SWLS-analyzer

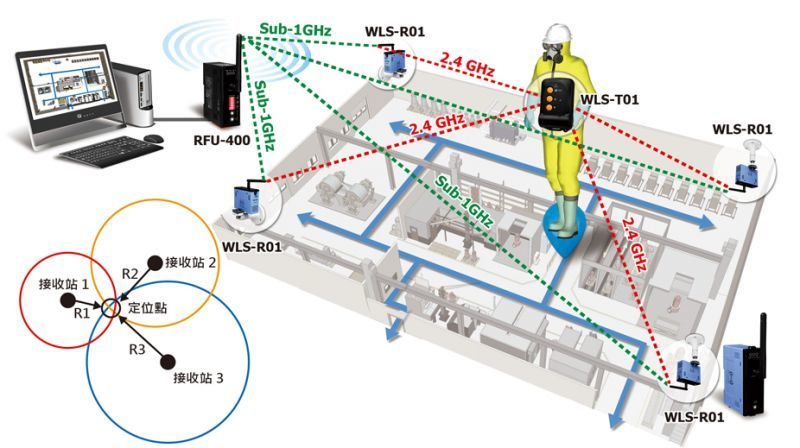

WLS-analyzer is a wireless locating system (WLS) utility software which is developed by ICP DAS. It has the monitoring and positioning functions that can be used to integrate the wireless positioning system of ICP DAS. The WLS utilizes the wireless of the active-base 2.4GHz locators(Tag) which transferred by the receivers(Router). The WLS-analyzer retrieves the first three stronger signals of the Routers and uses the triangulation algorithm to estimate the location of the Tag. In other words, the first three closer Routers could indicate where the Tag is. Here shows the illustration.
