I-7188EN 시리즈
- 제품명
- I-7188EN 시리즈
- 용도
- 소개 및 선택가이드
- 특성
- 이더넷 to 시리얼 포트 컨버터
- 제조사
- ICPDAS (대만)
- Serial Converter/Repeater/Hub
- Ethernet to Serial Converter
- Sharer/Converter
- Addressable RS-485 to RS-232 Converter
I-7188EN Series Ethernet to Serial Port Converter

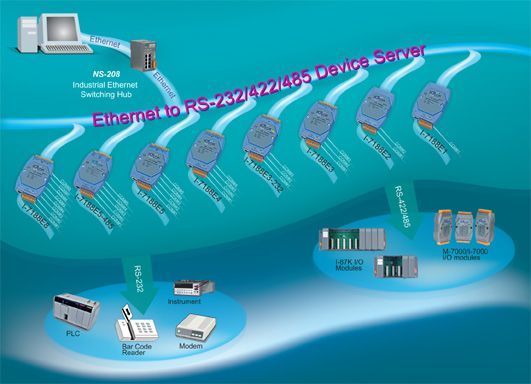

I-7188EN converter is a bridge between the Ethernet and RS-232/422/485. After installing VxComm driver on the PC, users can create Virtual COM ports mapped to the COM ports of the 7188EN. The original software (based on COM port) can connect with remote RS-232/422/485 devices via the Ethernet without any modification. I-7188EN is the most cost effective method to combine your original serial device with Ethernet communication ability.
|
I-7188EN Series Ethernet to Serial Port Converter
|
||||||||
| Model | Ethernet Port | Total COM Port | RS-232 | RS-485 | RS-422 | |||
|---|---|---|---|---|---|---|---|---|
| I-7188E1 | 10 Base-T | 1 | 1 | 0 | 0 | |||
| I-7188E2 | 10 Base-T | 2 | 1 | 1 | 0 | |||
| I-7188E3 | 10 Base-T | 3 | 1 | 1 | 1 | |||
| I-7188E3-232 | 10 Base-T | 3 | 2 | 1 | 0 | |||
| I-7188E4 | 10 Base-T | 4 | 3 | 1 | 0 | |||
| I-7188E5 | 10 Base-T | 5 | 4 | 1 | 0 | |||
| I-7188E5-485 | 10 Base-T | 5 | 1 | 4 | 0 | |||
| I-7188E8 | 10 Base-T | 8 | 7 | 1 | 0 | |||
| Note: Both I-7188E3 and I-7188E3-232 have 4x DI and 4x DO | ||||||||
