제품 상세보기
PDS-8x1 시리즈
- 제품명
- PDS-8x1 시리즈
- 용도
- 선택가이드
- 특성
- Programmable
- 제조사
- ICPDAS (대만)
- Introduction
- Non-Programmable
- PDS-700 Series
- PDS-8x1 Series
- PPDS-700-MTCP Series
- DS-2200 Series
- More
|

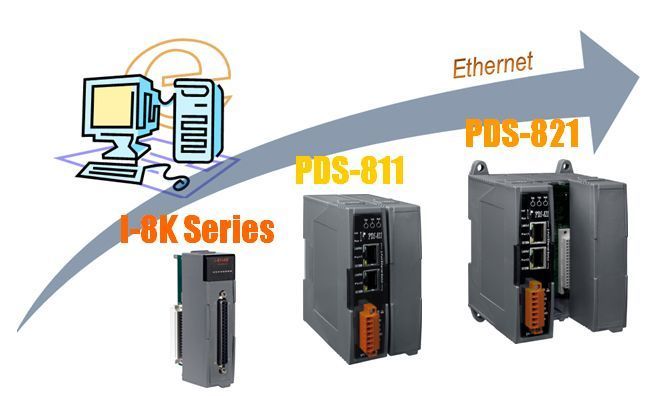

PDS-8x1 Series Programmable Device Servers
|
|||||||
| Model | Slots | CPU | RAM/Flash Disk | Ethernet | Operating System | Console Port | (Optional) Max. Serial Ports |
|---|---|---|---|---|---|---|---|
| PDS-811 | 1 | 80186, 80 MHz | 512 KB/512 KB | 2-port Ethernet Switch |
MiniOS7 |
3-wire RS-232
|
4 |
| PDS-821 | 2 | 80186, 80 MHz | 512 KB/512 KB | 2-port Ethernet Switch |
MiniOS7 |
3-wire RS-232
|
8 |
|
I-8K Serial Modules (Optional)
|
||||||
| Model | FIFO | Isolation | Self-Tuner | Ports | Interface | Connector |
|---|---|---|---|---|---|---|
| I-8112iW-G | 128 Bytes | 2500 Vrms | – | 2 | 9-wire RS-232 | DB-9 |
| I-8114W-G | 128 Bytes | – | – | 4 | 9-wire RS-232 |
DB-37
|
| I-8114iW-G | 128 Bytes | 2500 Vrms | – | 4 | 5-wire RS-232 | DB-37 |
| I-8142iW-G | 128 Bytes | 2500 Vrms | Yes | 2 | 4-wire RS-422 2-wire RS-485 |
Terminal Block |
| I-8144iW-G | 128 Bytes | 2500 Vrms | Yes | 4 | 4-wire RS-422 2-wire RS-485 |
Terminal Block |
| Note: 2-wire RS-485: Data+, Data- with Self-Tuner inside 4-wire RS-422: TxD+, TxD-, RxD+, RxD 3-wire RS-232: RxD, TxD, GND 5-wire RS-232: RxD, TxD, CTS, RTS, GND 9-wire RS-232: RxD, TxD, CTS, RTS, DSR, DTR, DCD, RI, GND |
||||||
